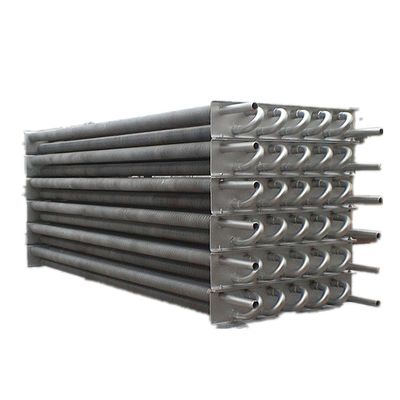

Power Station CFB Boiler Economizer with ASTM Certification for Central Heating
Szczegóły produktu
| Typ: | Naturalne krążenie | Struktura: | Rurka ognia i rura wodna |
|---|---|---|---|
| Ciśnienie: | Niskie/wysokie ciśnienie | Styl: | Pionowy |
| Paliwo: | Węgiel / Gaz / Ogrzewanie węglowe / Woda | Wyjście: | Gorąca woda / para |
| Waga: | 20000 kg | Obróbka powierzchniowa: | Namalowany |
| Naga rura OD: | 25-1650 mm | Naga grubość rury: | 2-40 mm |
| Grubość płetwy: | 0,6-3,0 mm | Wysokość płetw: | 5-30 mm |
| Fin Tube: | 5-30 mm | Długość rurki płetwowej: | ≤12000 mm |
| Tworzywo: | Stal węglowa, stop, stal austenityczna | ||
| Podkreślić |
ASTM Certification Boiler Economizer,Central Heating CFB Boiler Economizer,Power Station Boiler Economizer |
||
Opis produktu
| Parameter (Unit) | Specification (mm) |
|---|---|
| Bare pipe (OD) | 25-1650 |
| Bare pipe (Thickness) | 2-40 |
| Fin (Thickness) | 0.6-3.0 |
| Fin (Height) | 5-30 |
| Fin tube thread pitch | 5-30 |
| Fin tube length | ≤12000 |
- Impact test and strength calculation reports with complete materials documentation
- 100% NDT (non-destructive testing) of all steel plates, tubes, and electrodes
- Comprehensive weld inspection including X-ray, γ-ray, and liquid penetrant testing
- Hydraulic pressure testing to verify working pressure standards and safety
Najważniejsze cechy produktu
Power Station CFB Boiler Economizer Central Heating ASTM Certification Product Overview The economizer is a mechanical heat exchange device designed to reduce energy consumption by preheating fluids. This unit is specifically engineered for power station CFB (Circulating Fluidized Bed) steam boiler ...
