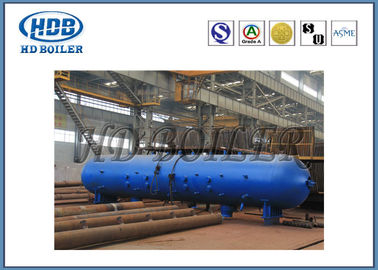

Water Heat Boiler Steam Drum Level Control , Multi Fule Oil Steam Boiler Drum

Water Heat Boiler Steam Drum Level Control , Multi Fule Oil Steam Boiler Drum

    • Water Heat Boiler Steam Drum Level Control , Multi Fule Oil Steam Boiler Drum
    • Water Heat Boiler Steam Drum Level Control , Multi Fule Oil Steam Boiler Drum
    • Water Heat Boiler Steam Drum Level Control , Multi Fule Oil Steam Boiler Drum
    • Water Heat Boiler Steam Drum Level Control , Multi Fule Oil Steam Boiler Drum
  • Water Heat Boiler Steam Drum Level Control , Multi Fule Oil Steam Boiler Drum

    Szczegóły Produktu:

    Place of Origin: China
    Nazwa handlowa: HD Boiler
    Orzecznictwo: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Steam drum

    Zapłata:

    Minimum Order Quantity: 1 set
    Cena: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 50~100 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 400 Tons per month
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Condition: New Fuel: Coal / Gas / Oil-fired / Water Heat
    Structure: Fire / Water Tube Type: Natural Circulation / Once Through
    Usage: Industry / Power Station Packaging: Iron Frame Package
    Dimension: Customization Weight: 10~1000 tons

    phase separator Chain Grate Boiler Drum level control environmental protection ASME , NB Code

    Description

    A steam drum is a pressure chamber of a steam boiler located at the upper extremity of steam boiler circulatory system. It is a reservoir of water/steam at the top end of the water tubes. The steam drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture. Steam is separated from the water and then discharged at a position above the water level maintained there.

    Classification


    Pressure

    Low

    Middle

    High

    Superhigh

    Inner diameter(mm)


    800-1200


    1400-1600


    1600-1800


    1600-1800

    Thickness(mm)

    16-25

    32-46

    60-100

    80-100

    Material

    Carbon steel

    Carbon steel & Alloy steel

    Carbon steel & Alloy steel

    Alloy steel


    Efficient steam-water separation factors

    1. It prevents the carry-over of water droplets into the superheater, where thermal damage could result.
    2. It minimizes the carry-under of steam with the water that leaves the drum, where this residual steam would reduce the circulation effectiveness of the boiler.
    3. It prevents the carry-over of solids. Solids are dissolved in the water droplets that may be entrained in the steam if not separated properly. By proper separation, this prevents the formation of deposits in the superheater and ultimately on the turbine blades.

    **carry-over is the passing of water and impurities to the steam outlet.
    **The term critical pressure is the pressure at which there is no difference between the liquid and vapor states of water; i.e., the density is identical. This occurs at 3206 psia.


    Certificate

    Water Heat Boiler Steam Drum Level Control , Multi Fule Oil Steam Boiler Drum

    Company Introduction

    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.


    1. Fabrication area of 200,000 square meters
    2. 150 Engineers
    3. 600 Coded welders
    4. 60 Licensed Inspectors(NDT Level-III instructors)
    5. Class-A Licenses for Design and Manufacture Boiler
    6. ISO 9001:2008 Quality System
    7. ASME Certificate of Power Boilers
    8. ASME 'S','U' and NB stamp authorization

    Design and Manufacturing capacity

    1. Two automatic coiler production lines
    2. Hot bending to minimum bending radius 0.6D
    3. Membrane wall tube bending , with horizontal and vertical panel bending machines
    4. Panel fabrication for up to for 1000MW power plant boilers
    5. Fabrication of CFB Boiler Cyclone Separators
    6. Fabrication of Header to Chinese standards(GB), US standards (ASME), or EU standard (EN)
    7. Broad range of heat treatment equipment including 10 furnaces, offering normalizing and tempering
