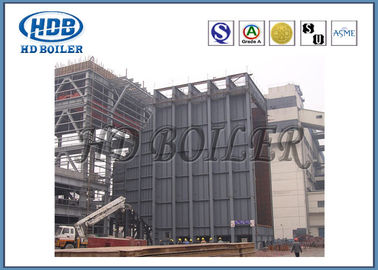

HRSG Heat Recovery Steam Generator , Gas Combustion Turbine Waste Heat Boiler

HRSG Heat Recovery Steam Generator , Gas Combustion Turbine Waste Heat Boiler

    • HRSG Heat Recovery Steam Generator , Gas Combustion Turbine Waste Heat Boiler
    • HRSG Heat Recovery Steam Generator , Gas Combustion Turbine Waste Heat Boiler
  • HRSG Heat Recovery Steam Generator , Gas Combustion Turbine Waste Heat Boiler

    Szczegóły Produktu:

    Place of Origin: CHINA
    Nazwa handlowa: HD BOILER
    Orzecznictwo: ISO9001, SGS , TUV , ASME , EN
    Model Number: HRSG

    Zapłata:

    Minimum Order Quantity: 1 Set
    Cena: Negotiable
    Packaging Details: Standard Seaworthy Package
    Delivery Time: 6-12month
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 80sets per year
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Model NO: HRSG Customized: Customized
    Usage: Steel,Cement,Glass,Nonferrous metals,Chemical etc Trademark: HD Boiler
    Size: Customized Spectification: Customized
    Range of application: Industrial Transport package: Seaworthy Package
    Origin: CHINA

    Waste heat boiler is converted waste heat to electrical energy technology



    Product description



    Cogeneration production process is coverted waste heat to electrical energy technology. Cogeneration not only energy,as wellas environmentally. Important cogeneration equipment room is HRSG. It uses gas, waste and other working fluid in the heat as a heat source or flammable substance, producing steam for power generation. As the working fluid temperature is not high, so the boiler bulky , consumed more than metal.Mainly used for high-temperature waste heat power generation flue gas heat, chemical reaction heat, waste gas, waste heat, less than 200 degrees and so on. Currently cogeneration applications has also been extended to the iron and steel, cement, glass,nonferrous metals, chemicals and other industries.



    Technical Parameter



    Cement production line capacity t/d 2500 3500 5000
    Boiler inlet flow (Nm3/h) Kiln(front) 96800 142000 192000
    Kiln(tail) 173000 241000 369000
    Boiler inlet gas temperature℃ Kiln(front) 380 420 395
    Kiln(tail) 365 360 355
    Rated evaporation t/h Kiln(front) 2/9.6 3/17 3.2/21.3
    Kiln(tail) 4.2/16.2 5.3/23 10.5/32
    Rated steam pressure Mpa Kiln(front) 0.2/2.4 0.2/2.4 0.2/2.4
    Kiln(tail) 0.2/2.4 0.2/2.4 0.2/2.4
    Rated steam temperature℃ Kiln(front) 160/Saturation 160/Saturation 160/Saturation
    Kiln(tail) 160/250 160/250 160/250
    Boiler structure Kiln(front) Vertical Vertical Vertical
    Kiln(tail) Vertical Vertical Vertical



    Advantages



    1. The heating surface of this type employs suspension structure which is good for absorbing boiler expansion and makes it safe in operation.
    2. The three cast-off mixed burning and blown gas waste heat boiler uses special sealing devices to reduce boiler air leakage and improve boiler efficiency.
    3. The heating surfaces employ reasonable flue gas velocity design to prevent soot accumulation.
    4. Straight-arrangement adopted keeps the heating surface clean and improve the heat exchange efficiency.
    5. This equipment organizes flue gas dynamic field to the flow of flue gas steady and uniform.
    6. The convection tube-bank employs assembled structure with fast installation and low cost.



    Flow Chart



    HRSG Heat Recovery Steam Generator , Gas Combustion Turbine Waste Heat Boiler



    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



    1. Fabrication area of 400,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization



    Cement Kilns dual pressure HRSG  waste heat energy Ecological efficiency of waste reuse
